WALTHERS LAYOUT CONTROL SYSTEM - SWITCH MACHINE

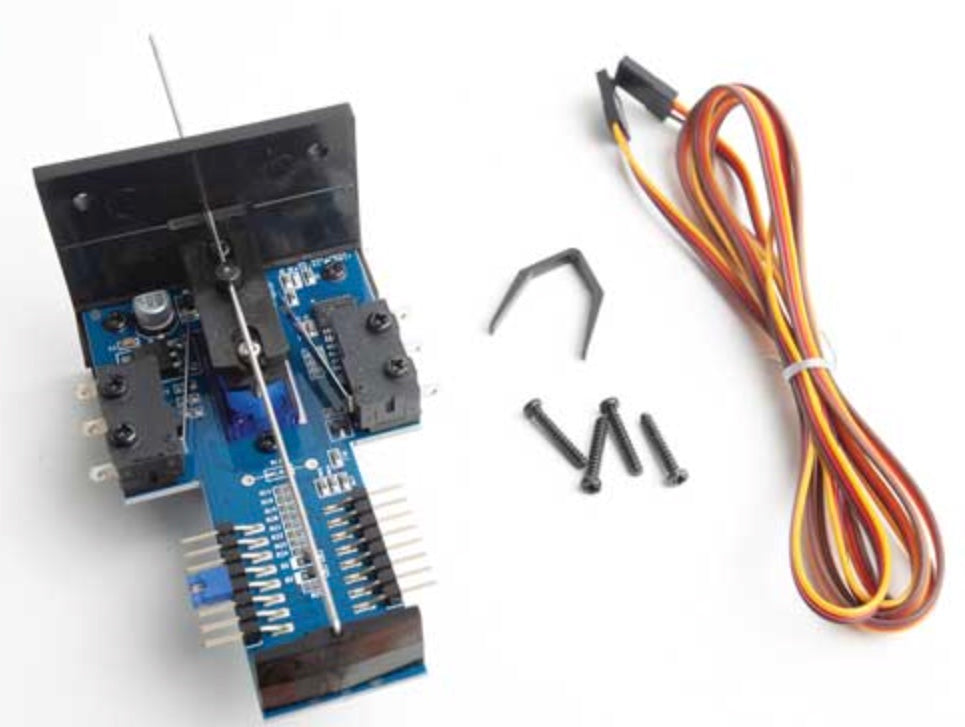

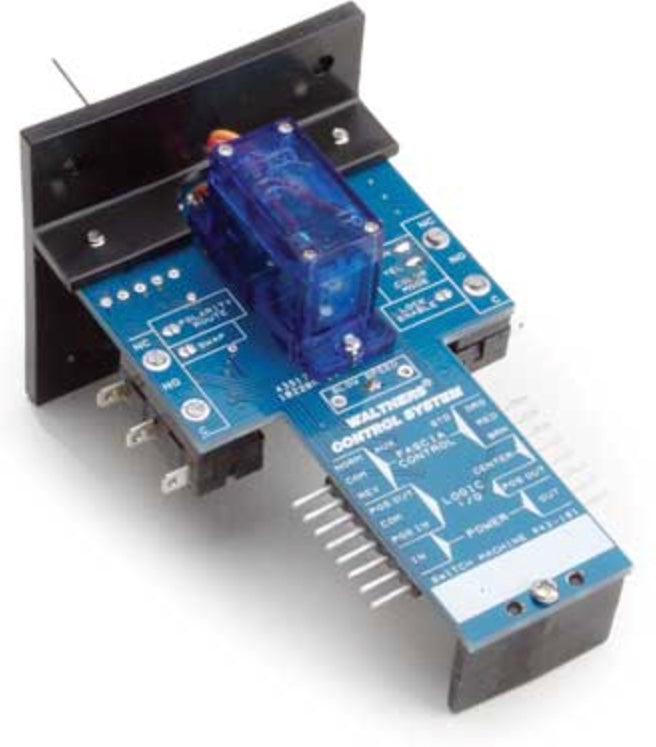

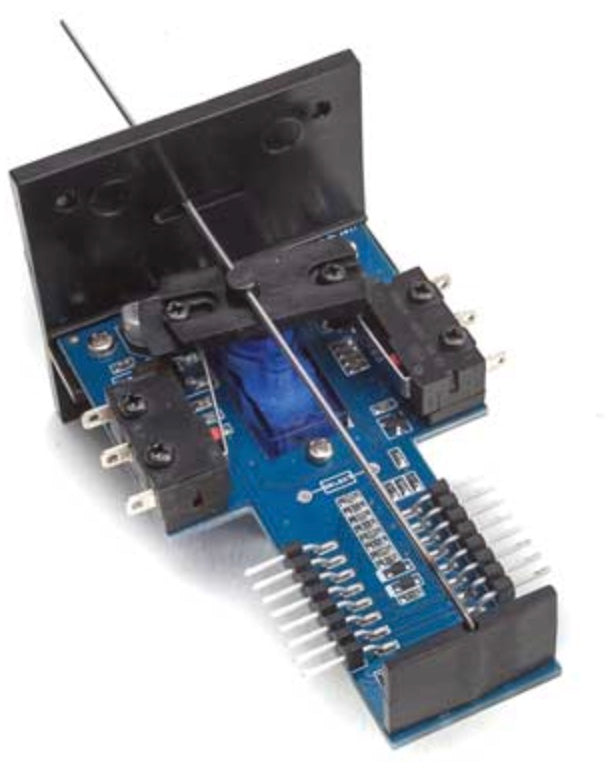

The Walthers Layout Control System Vertical Switch Machine features:

• Fully assembled, servo-based unit with approximately one second throw speed
• Optional DCC operation
• Two built-in 5A switches to power turnout frogs, signals, track blocks and more
• Self-locking mechanism for reliable positioning - servo power turns off when motion is complete
• Adjustable throw and tension from 1/32" to 1/2" (1mm to 12mm) for turnouts in any scale from Z to O
• Factory-assembled with output rod in centered position for fast and easy under-benchwork mounting
• Wire in minutes with included cables
• Outputs for both single or bi-color LEDs
• Connecting cable included - easily expanded with Connecting Cable (#942-112, sold separately)
• Horizontal mount measures 3-3/8" 8.5cm tall
