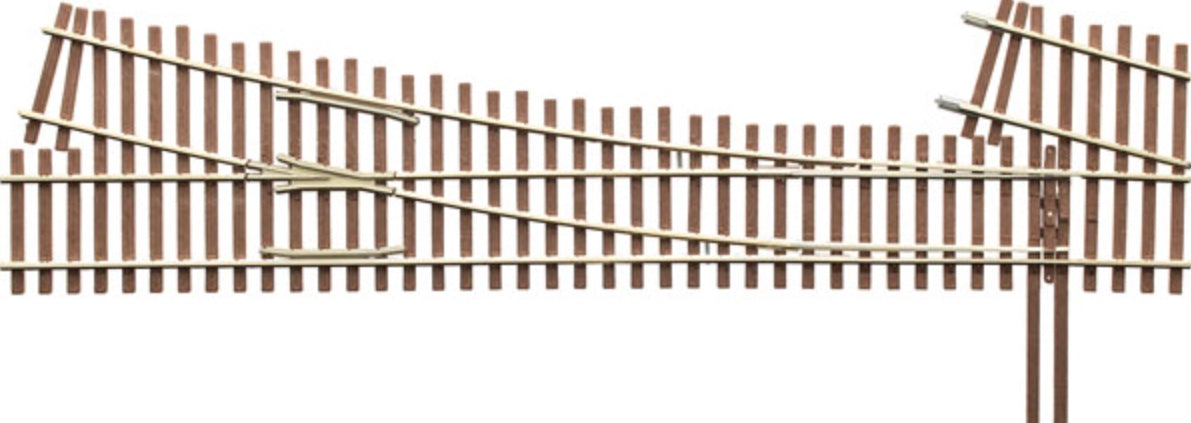

MICRO-ENGINEERING LADDER TRACK SYSTEM #5e RIGHT TURNOUT

#5e Last Ladder

Description

This turnout has the same Frog End as the #5b turnout including the curved Diverging Track.

The Point End of the turnout is the same as the #5d where the Through Track and curved Diverging Track from the previous turnout has, in effect, been made apart of the #5e turnout. This allows the #5e turnout to overlap the previous turnout thus saving space. The #5e provides 2-1/16 inch track spacing between body tracks.

How or where to use

1. The #5e Last Ladder turnout is generally used as the last turnout on a ladder track.
2. Point End: The Point End of the #5e turnout must connect to either a #5c or #5d turnout of the same hand.
3. Frog End: The Diverging Track and the Through Track of the #5e become the last two body tracks of the yard (or a runaround track from the Through Track).
